Customized single use Ball tip Fiber for Percutaneous Laser Disk Decompression (PLDD)
Properties |
|
|
Fiber type |
400um bare fiber |
|
Fiber length |
3m |
|
Connector type |
SMA905 or HP-SMA905 |
|
Distal tip Sterilization |
Ball tip EtO-sterilized |
Optional features
- extension sleeve available in various colors
- Laser inscription possible
- Customer-optimized designs on request
- Various accessories available
|
Core ф [µm] |
Clad ф [µm] |
Outer ф (fiber) [µm] |
NA |
|
200 |
240 |
265 |
0.22 |
|
400 |
440 |
465 |
0.22 |
|
600 |
660 |
685 |
0.22 |
Certifications & approvals: (Completed)
Our production processes, devices and procedures is certified by ISO 13485 .
Iran national medical device directorate.
Produced more than 1500Pcs. And we are capable of producing more than 500Pcs/month.
Disposable Ophthalmic Endo Probes
Bio compatible fibers made of silica in flat polished cannulas and assembled in an ergonomic hand piece for all typical ophthalmic laser devices.
Properties |
|
|
Wavelength |
Compatible with standard Ophthalmic laser |
|
Fiber type |
200um core fiber |
|
Fiber length |
3m |
|
Connector type |
SMA905 connector or F-SMA (DORC,ALCON,ZIESS) compatible |
|
Gauge |
20G, 23G, 25G, 27G |
|
Distal tip NA |
Flat and finished with Nano lapping process 0.22 |
Clinical Tests has done by a group of specialized in ophthalmology and sub-specialized in diseases and surgery of the vitreous body of the eye and the retina. (Iran, Oct. 2021).

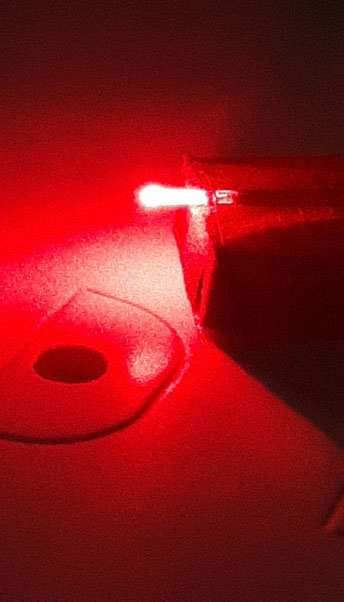

Laser beam quality test, here the uniformity of the fiber probe checked @530nm
Certifications & approvals: (In Progress)
Our production processes, devices and procedures is certified by ISO 13485 .
And Iran national medical device directorate (IMED)
Disposable Polyimide Coated Single ring Radial Fiber
A single ring 400um to 600 um shaped fiber guarantee very high mechanical stability and excellent beam quality.
Properties |
|
|
Fiber type Loose Tube |
400 and 600um Colored Hytrel or without loose tube |
|
Fiber length |
2m |
|
Connector type |
SMA905 connector or HP-SMA905 |
|
Distal tip NA Sterilization |
Encapsulated angled tip 0.22 EtO-sterilized |
Application
Vascular, plastic, gynecological and ENT surgery
Hemorrhoids and fistulas, Endo-Lift.
Optional features
- extension sleeve available in various colors
- Laser inscription possible
- Customer-optimized designs on request
- Various accessories available
|
Core ф [µm] |
Clad ф [µm] |
Outer ф (fiber) [µm] |
NA |
|
200 |
240 |
265 |
0.22 |
|
400 |
440 |
465 |
0.22 |
|
600 |
660 |
685 |
0.22 |
Clinical Tests has done by a group of specialized in diseases and laser surgery of the hemorrhoids and fistulas . (Iran, Nov. 2021). Results has been satisfactory on more than 40s patients.
Certifications & approvals: (In Progress)
Our production processes, devices and procedures is certified by ISO 13485 .
And Iran national medical device directorate (IMED)
Reusable Polyimide Coated Single Ring Radial Fiber
A single ring radial fiber precisely covered by a dome shaped fused silica capillary tube protecting the radial tip during surgery and facilitates the fiber tip movement through veins. This cap also protects the fiber tip from carbonization and keeps the fiber efficiency for several surgeries. This probe can easily penetrate inside the veins, thanks for no sharp and brittle edge on the probe.
Properties |
|
|
Fiber type Loose Tube |
400 and 600um Colored Hytrel or without loose tube |
|
Fiber length |
2m |
|
Connector type |
SMA905 connector or HP-SMA905 |
|
Distal tip NA Sterilization |
Encapsulated angled tip 0.22 EtO-sterilized |
Application
Vascular, plastic, gynecological and ENT surgery
Hemorrhoids and fistulas
Optional features
- extension sleeve available in various colors
- Laser inscription possible
- Customer-optimized designs on request
- Various accessories available
|
Core ф [µm] |
Clad ф [µm] |
Outer ф (fiber) [µm] |
NA |
|
400 |
440 |
465 |
0.22 |
|
600 |
660 |
685 |
0.22 |
Certifications & approvals: (In Progress)
Our production processes, devices and procedures is certified by ISO 13485 .
And Iran national medical device directorate (IMED)
Reusable Bare Fiber dentistry
Autoclavable polyimide fibers with biocompatible protection tube (ф2 mm)
guarantee very high mechanical stability and excellent beam quality
Dental laser handpieces have standard SMA905 or FC connector could match the mainstream laser machines, including Biolase Laser, Denlase Laser, Doctor Smile.
Optional features
- Autoclavable
- Available with Germanium-doped silica / silica fibers(NA = 0.37)
- Customer-optimized designs on request
- Customer-specific connectors can be assembled
- Various accessories available
|
Core ф [µm] |
Clad ф [µm] |
Outer ф (fiber) [µm] |
NA |
|
200 |
240 |
265 |
0.22 |
|
400 |
440 |
465 |
0.22 |
|
600 |
660 |
685 |
0.22 |
Periodontal therapy:
Gingivitis, Periodontitis, Operculectomy, Frenectomy, Gingivectomy
Endodontics:
Root canal sterilization, Peri l abscess, Caries, Desensitization, Laser analgesia
Oral surgery:
Soft tissue excision, Ablation, Implant exposure, Peri-implantitis, Apthae and herpes
Aesthetic procedures:
Bleaching, Depigmentation, Gummy smile correction, Aphthae and herpes, Crown lengthening
Bio stimulation:
Teeth desensitization, Post extraction, TMJ, Haemostats, Leukoplakia
Certifications & approvals: (In Progress)
Diffused Fiber Laser Probe:
This specific laser fiber allows the treatment of a wider range of tumors with a single treatment and overcomes the limitations of currently available laser fibers, such as the limited achievable lesion sizes due the maximum power that can be used without carbonizing tissue.
Applications:
- Hemorrhoids and fistulas
- Tumor ablation
Clinical Tests has done by a group of specialized and sub-specialized in diseases and surgery of the.
Hemorrhoids and fistulas. This fiber is the best choice for tumor ablation and fistulas.
|
Core ф [µm] |
Clad ф [µm] |
Outer ф (fiber) [µm] |
NA |
|
200 |
240 |
265 |
0.22 |
|
400 |
440 |
465 |
0.22 |
|
600 |
660 |
685 |
0.22 |
Certifications & approvals: (In Progress)
Our production processes, devices and procedures is certified by ISO 13485 .
And Iran national medical device directorate (IMED)
Curved Ball Fiber surgical probe:
Our state-of-the art laser BPH fiber optics probe, utilizes a curved ball at the end of the fiber to perform either coagulation or vaporization of the prostate. Side emitting nature of this probe facilitates the surgeon to work with it in contact mode. This fiber completely delivers the laser energy to the prostate tissue without any additional scattered light.
|
Core ф [µm] |
Clad ф [µm] |
Outer ф (fiber) [µm] |
NA |
|
400 |
440 |
465 |
0.22 |
|
600 |
660 |
685 |
0.22 |
New Product which is under primitive blood and tissue compatibility tests.
